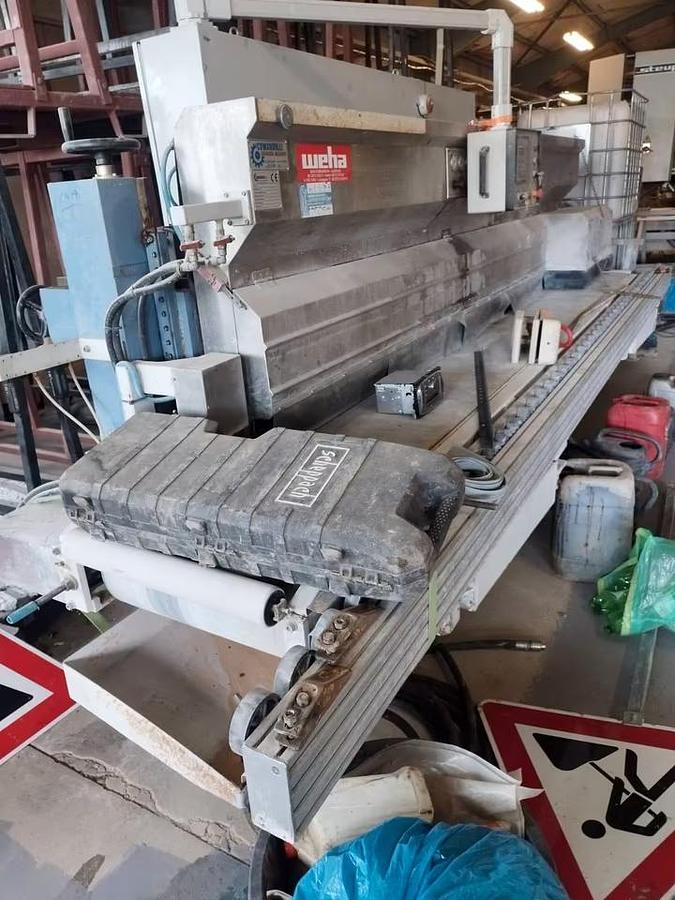

2000 Comandulli EDILUX 8+4 DX/W FL

Edge polisher

Band direction from left to right

band support from rollers

Each grinding pinhole individually programmable with forward and return

Grinding pressure setting for each support individually

Extending rail movable over motor

Water shutoff via solenoid valve

water tray under the machine

Grinding length unlimited

Workpiece height 10 - 80 mm

Conveyor belt width 600 mm

Rated output: 38 kW

Connection according to nameplate: 380 V, 50 Hz, 3+PE

Feed speed 0.1-3 m/min

Working height approx. 800 mm

8 faceplate supports a 1.5 kW

2 upper top supports at 1.5 KW

2 lower wing supports at 1.5 kW

1 water-nasensupport 4 kW

2 roller conveyors at 2000mm

Grinding wheel diameter 150 mm

Water consumption approx. 180 L/min

Weight approx. 3900 kg
