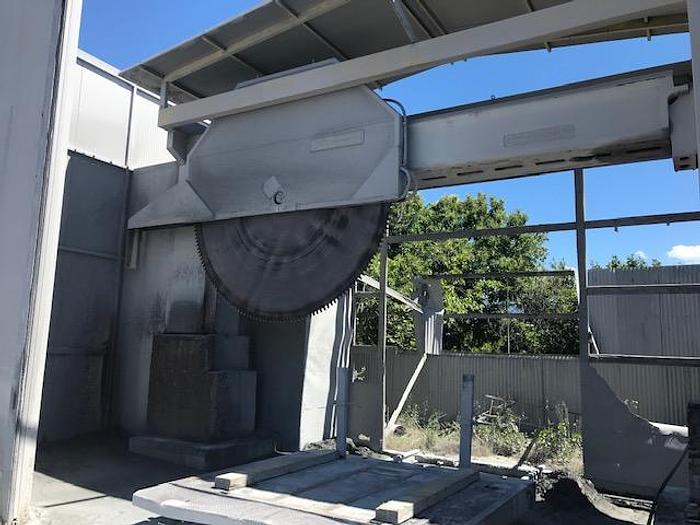

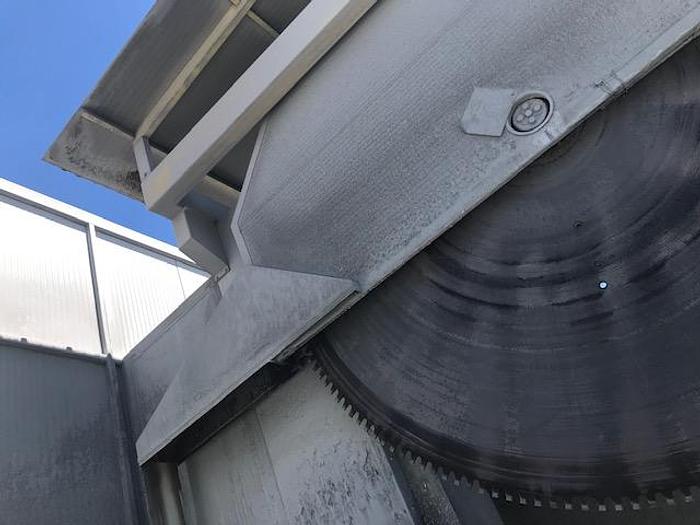

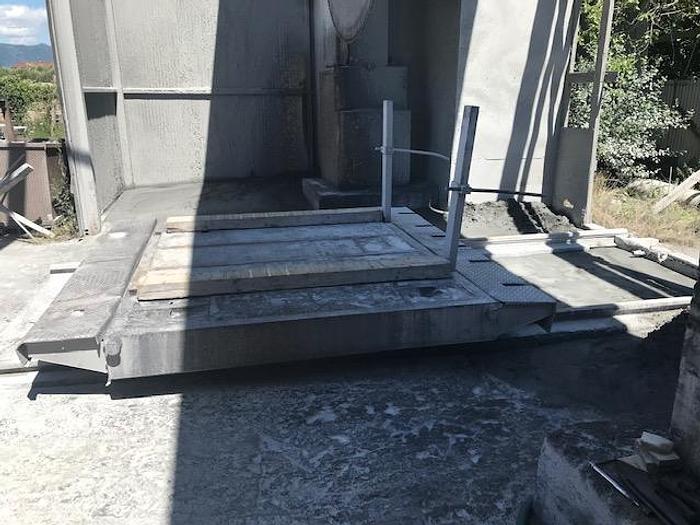

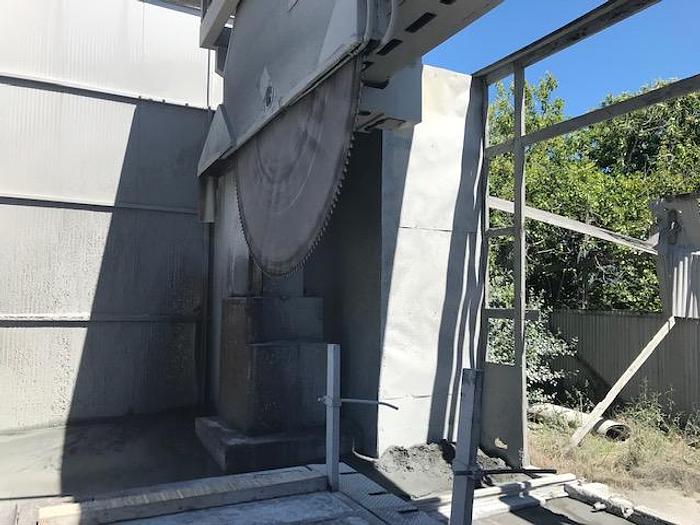

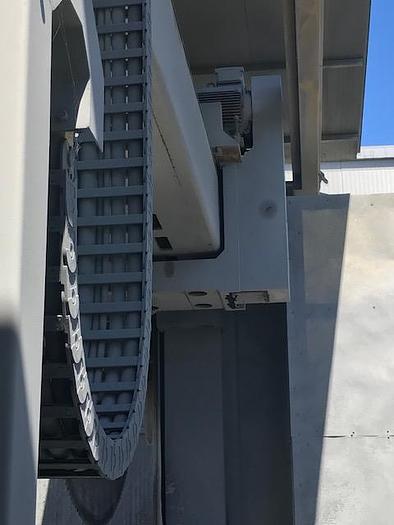

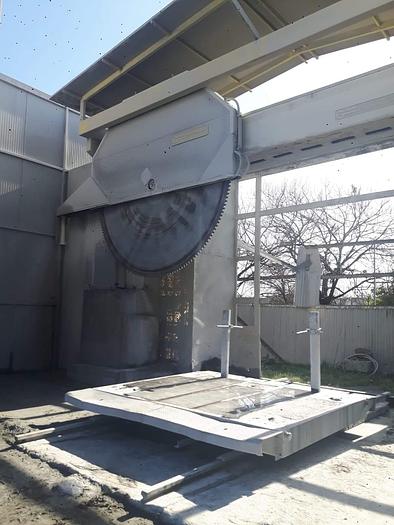

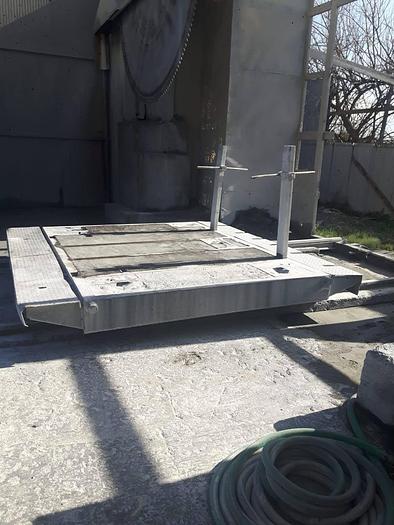

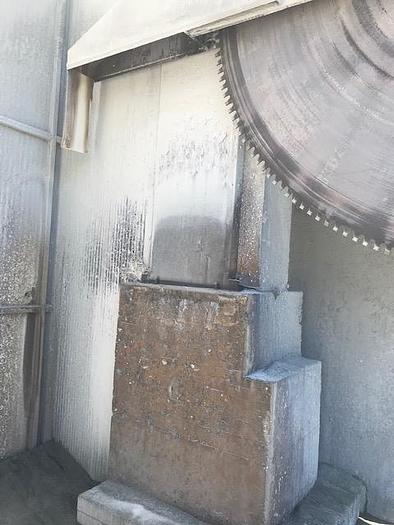

1999 GMM Giga 3500 (M)

Giant blade/block saw TECHNICAL CHARACTERISTICS Maximum standard knife diameter / knife hole diameter..mm 3,500 / 120 Cutting stroke of the knife (X-axis)..mm 4,000 Maximum vertical stroke of the knife (Z-axis)..mm 2,200 Blade locking flange diameter..mm 450 maximum cutting depth...mm 1,520 Maximum travel distance of the work block holder carriage (Y-axis)..mm 2,800 Travel distance of the block holder carriage when loading the blocks upon request a multiple of..m 3 Car surface size..mm 2,200 x 3,000 Blade motor.kW 44 variable cutting and return speed (X-axis)..m/1' 0 - 15/ 50 Cooling water consumption..lt/1' 120 Total mass of the machine complete with carriage...tons 18 Volume of the packed machine in standard version...Quantity: 1 x 40'FCL/OTC Standard installation dimensions (width x depth x height)..mm 11,100 x 6,100 x 5,650 (h) Standard voltage/frequency..V / Hz.        400 / 50
