2015 Marchetti AXCO Z 1000-

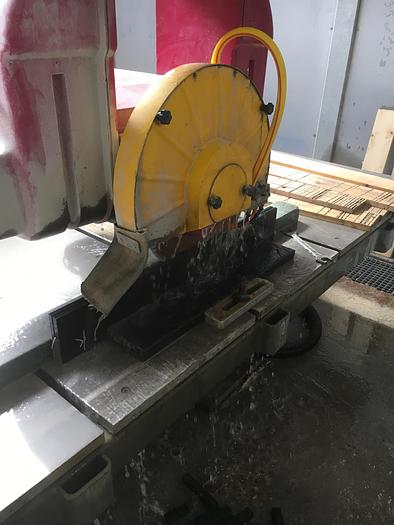

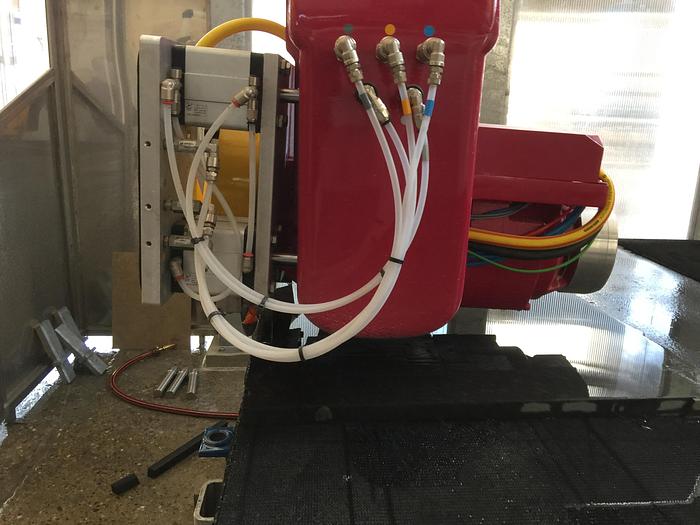

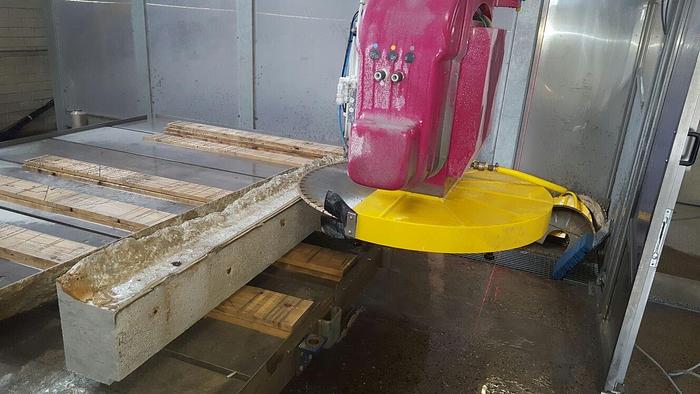

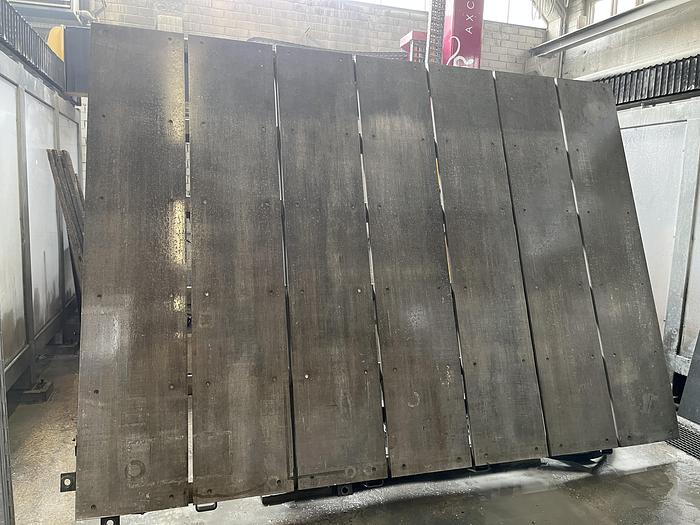

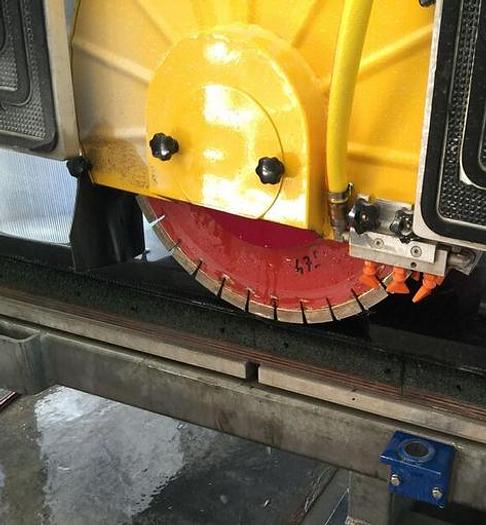

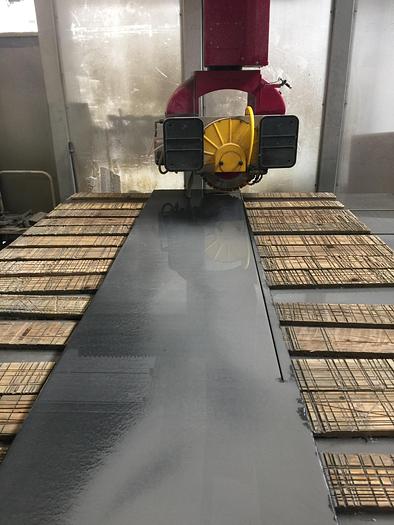

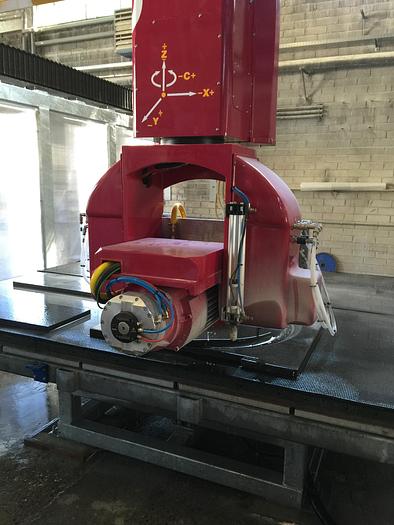

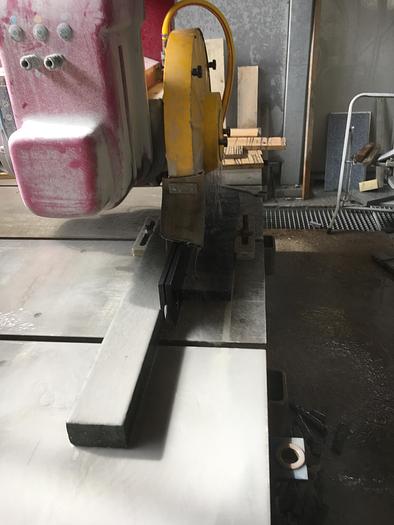

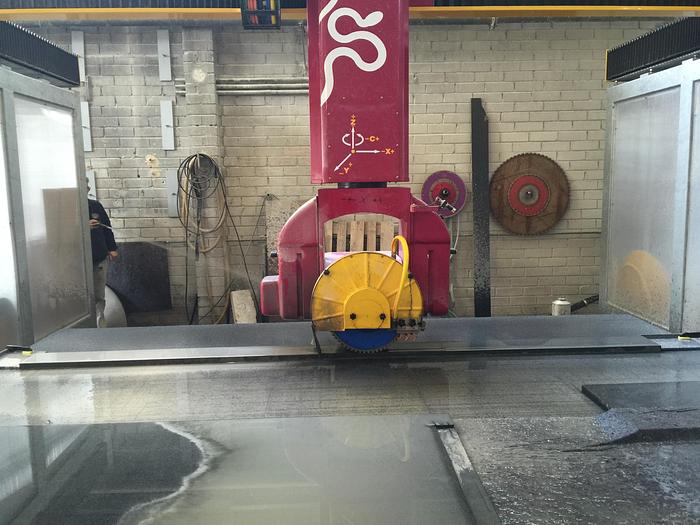

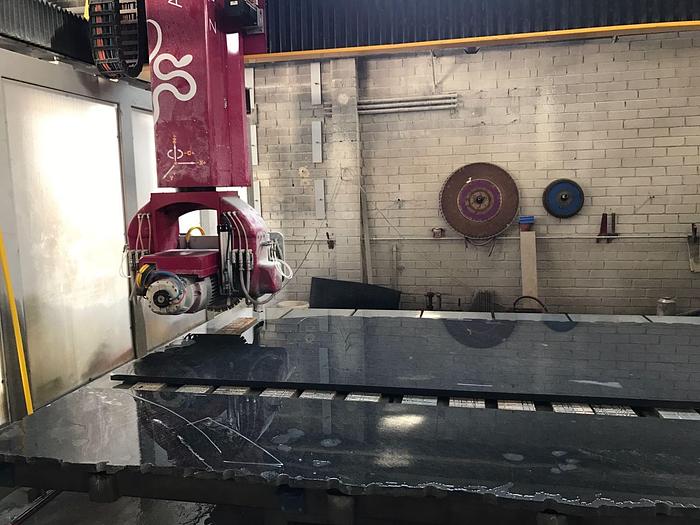

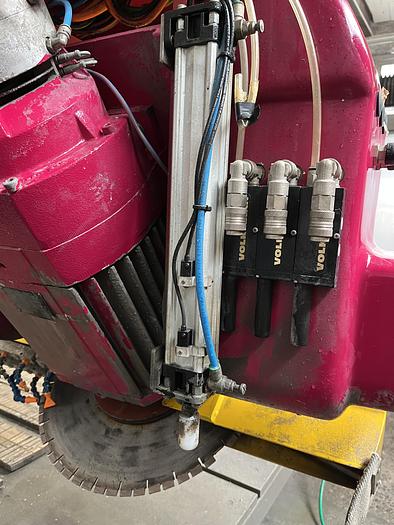

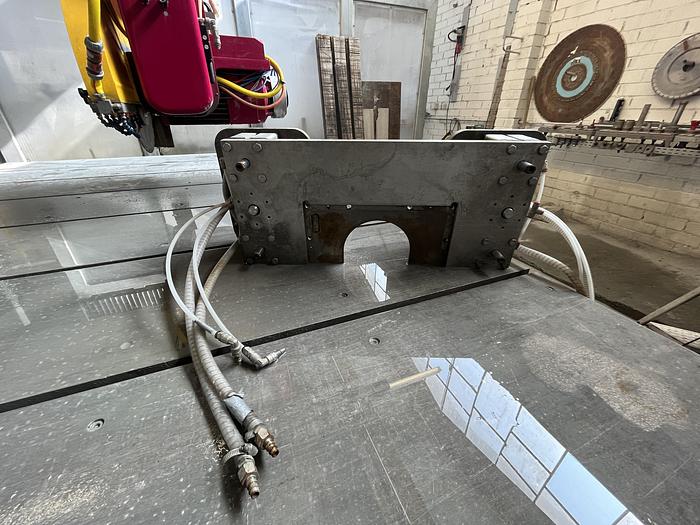

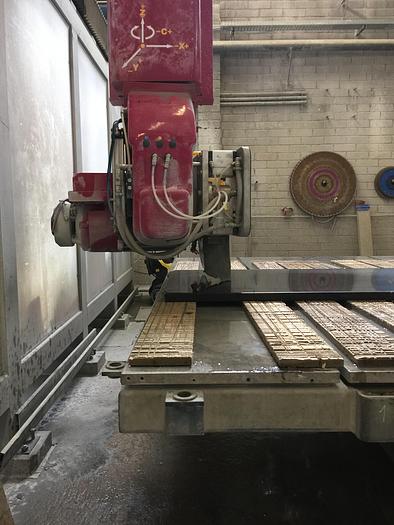

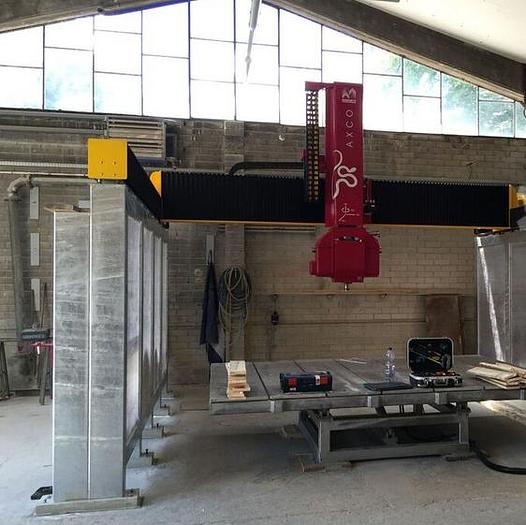

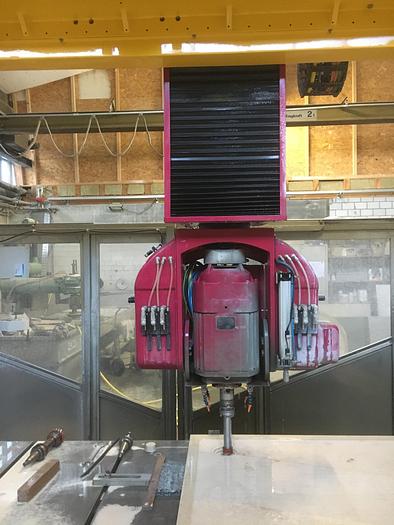

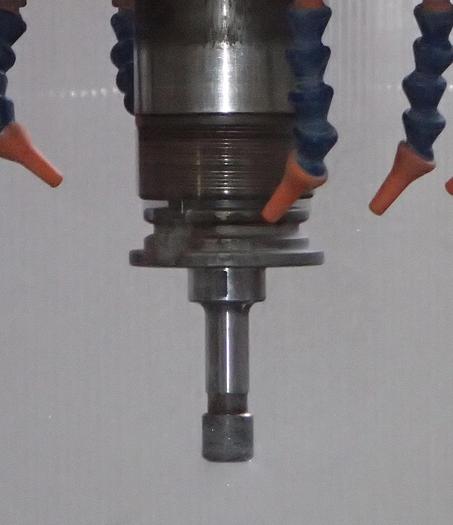

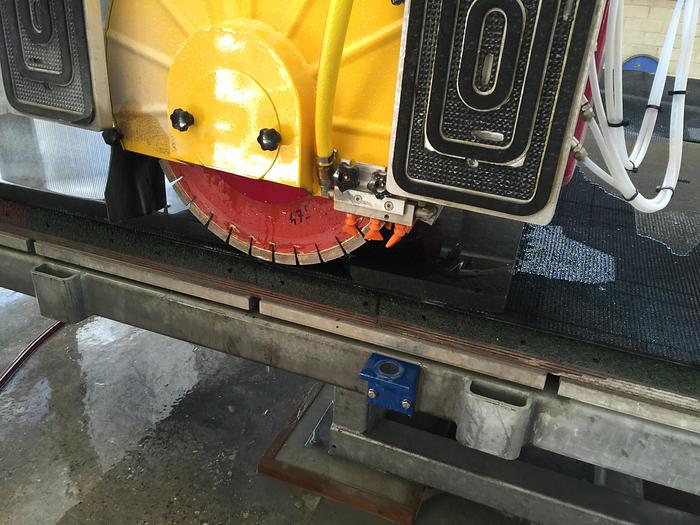

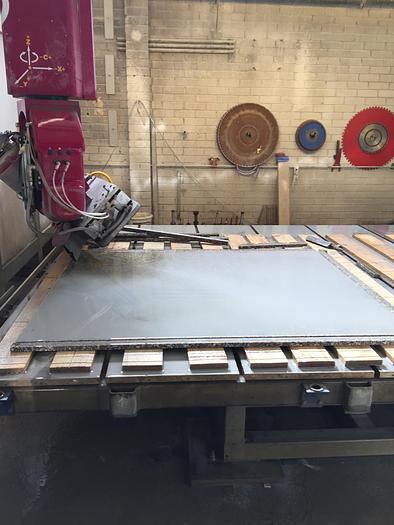

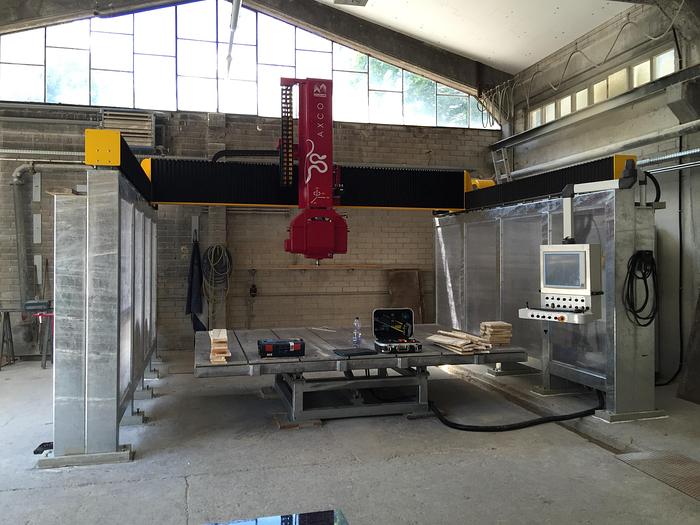

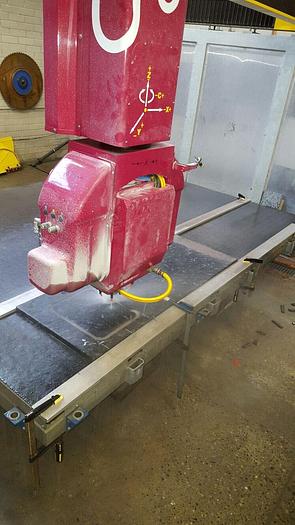

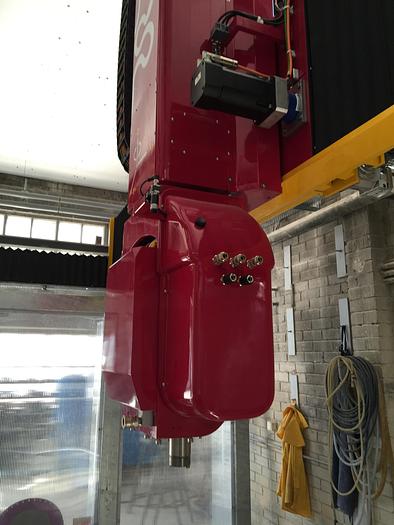

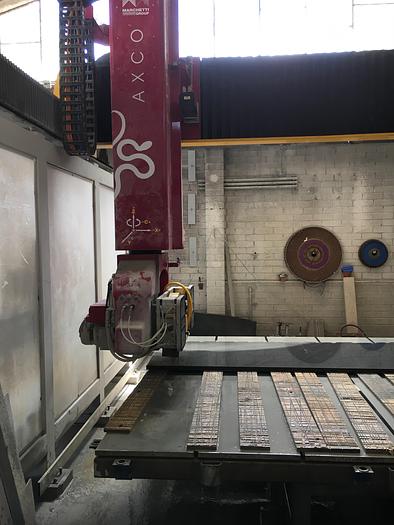

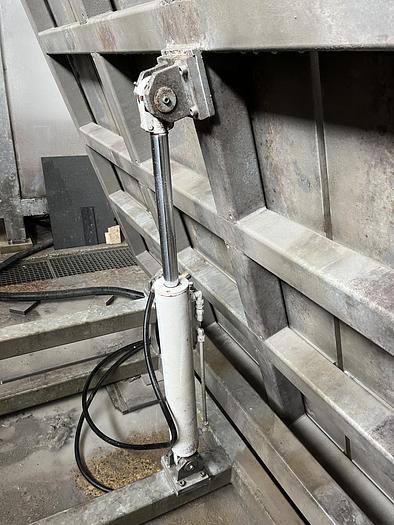

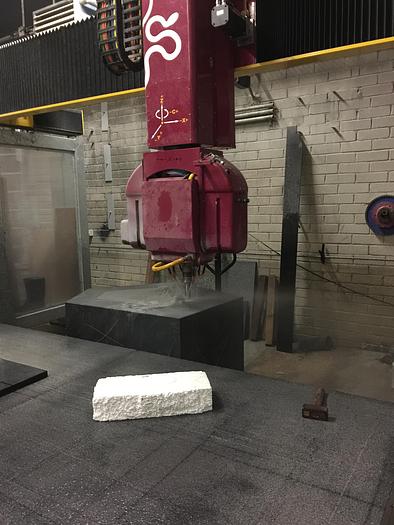

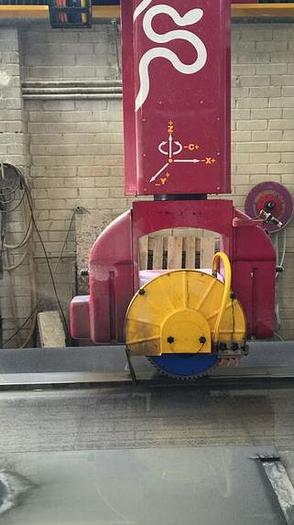

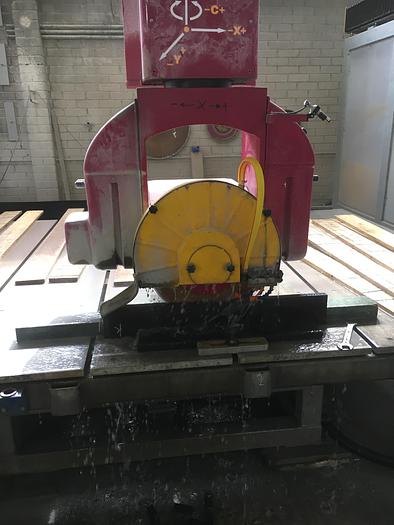

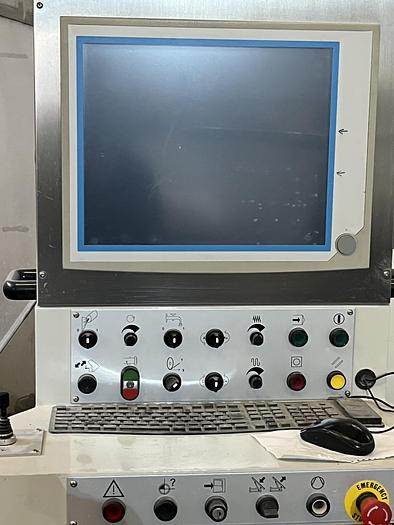

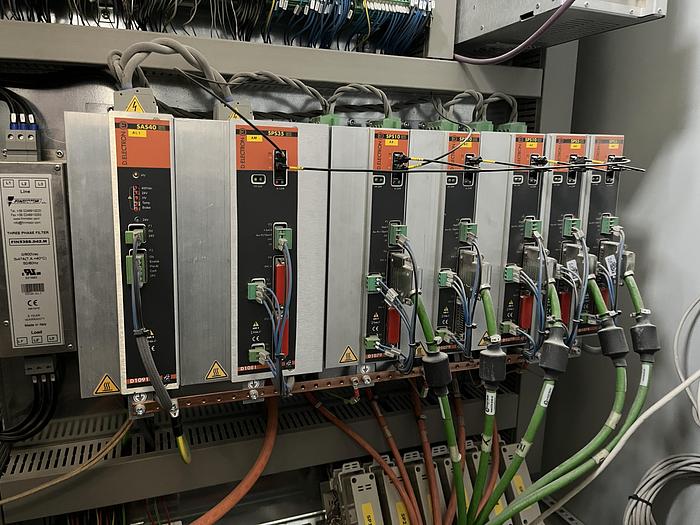

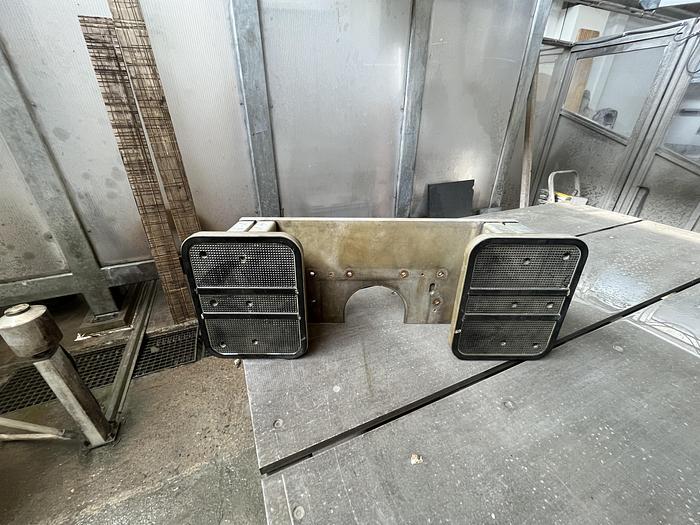

CNC bridge saw, 5 axes with vacuum panel separator Marchetti Axco Z1000, including hydraulic tilting table Head rotatable 370° and aiming laser Solid, hot-dip galvanized machine frame mounted on steel foundations. Machine space requirements X = 7000 mm Y = 6500 mm Hydraulic tilting table hot-dip galvanized, size 3480 x 2500 mm. Guideway axes X = 3600 mm Y = 3700 mm Z = 1000 mm Plate thickness gauge on the rotating head Vacuum separator for CAD/CAM Pegasus Cutting Stone Front sliding doors made of stainless steel with safety device. Operator panel with swivel arm, D.Elektron touchscreen and keyboard. Control cabinet air-conditioned. Spindle 16 KW Cone ISO 40 Speed 1- 6500 RPM Max. saw blade diameter 900 mm Max. cutting depth depending on protection 330 mm Control software, Winterm CNC Z32, Max. saw blade diameter 900mm. ISO taper holder for various milling tools. Camera for Cut & Move function The machine is still in operation and in perfect condition More used machines at: www.janssen-usedmachines.com New stone processing machines: www.janssen-steintechnik.de
