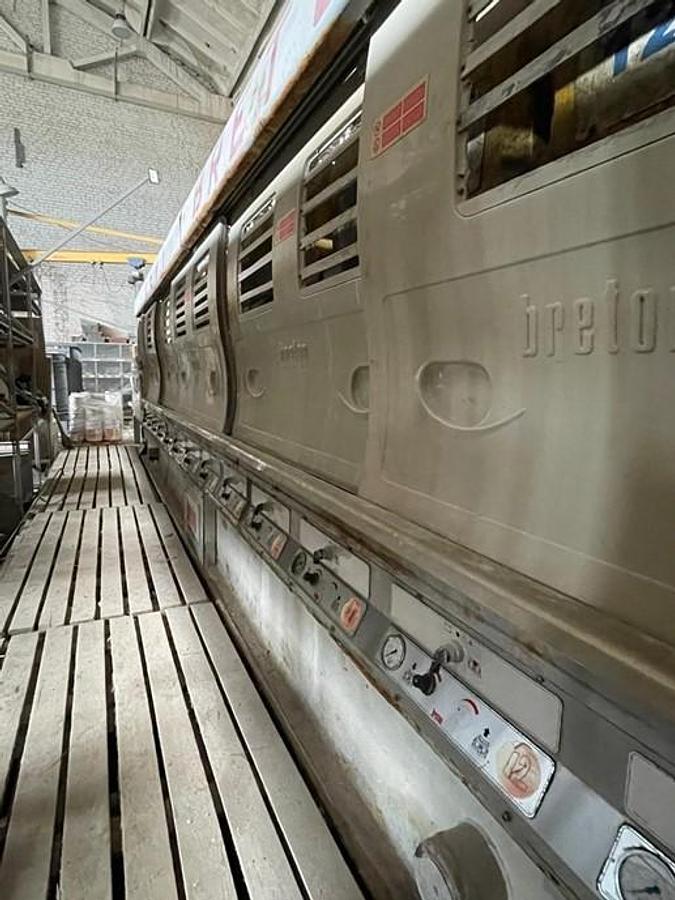

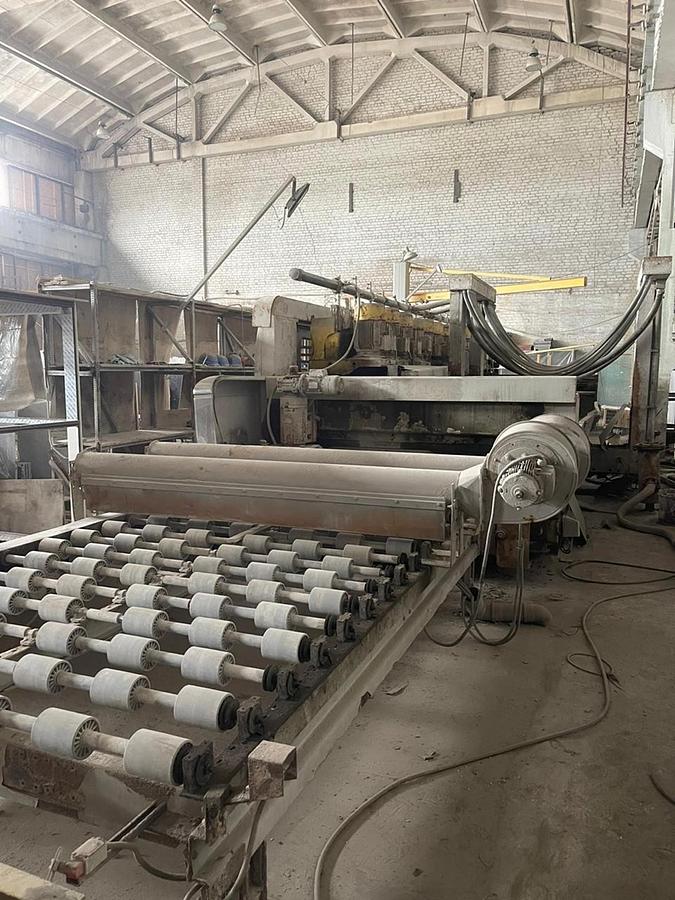

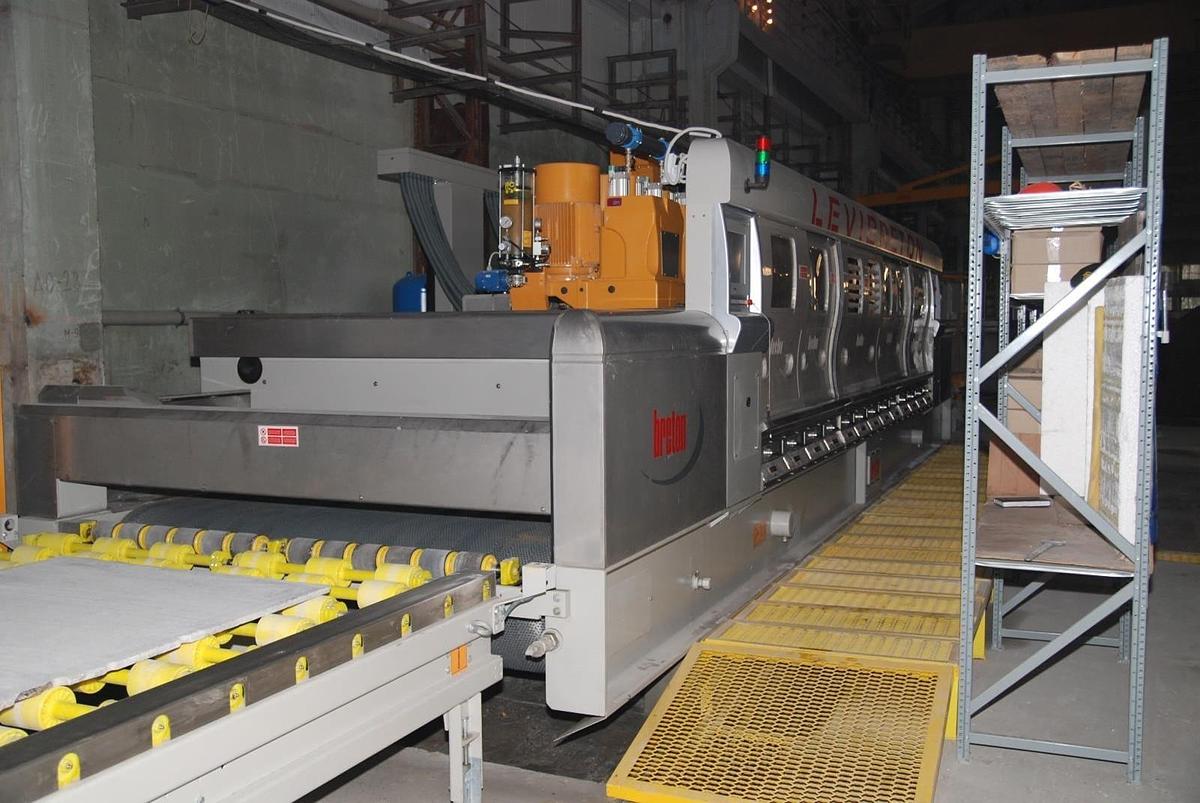

2008 Levibreton KG 3000/013 ULTRIX

2008 Levibreton KG 3000/013 ULTRIX

Location:Ukraine

Description

Polishing line Grinding/polishing spindle motor No. 0 – 18.5 kW Grinding/polishing spindle motor No. 13 – 15 kW Beam motor – 7.5 + 7.5 kW Transport motor – 1.5 kW Brushed motor – 1.1 kW Measuring motor – 0.37 kW Protection motor – 0.18 + 0.18 kW Electric oil pump – 0.12 kW Total water consumption – 450 l/min Consumption per spindle – 30 l/min – Compressed air (minimum pressure 6 bar) – 1120 l/min; Head diameter: 600 mm; Jet velocity: 0–60 m/min; Belt speed: 0.3–2.7 m/min; Dimensions of the processable material: Length: 1400–3500 mm; Width: 600–2050 mm; Thickness: 10–110 mm; Heads with 6 movable segments SG-6: 13 pieces; Additional discs for marble processing; Automatic lifting tables for loading and unloading panels: 2 pieces; Disc scanner: T200; Average productivity: 22–25 m²/hour (at a size of 2800 x 1600 mm); Dimensions: 10180 x 3950 x 2900 mm Weight 26500 kg (length including tables 23500 mm) More used machines at: www.janssen-usedmachines.com New stone processing machines: www.janssen-steintechnik.de

Specifications

ManufacturerLevibreton
ModelKG 3000/013 ULTRIX
Year2008
ConditionUsed
