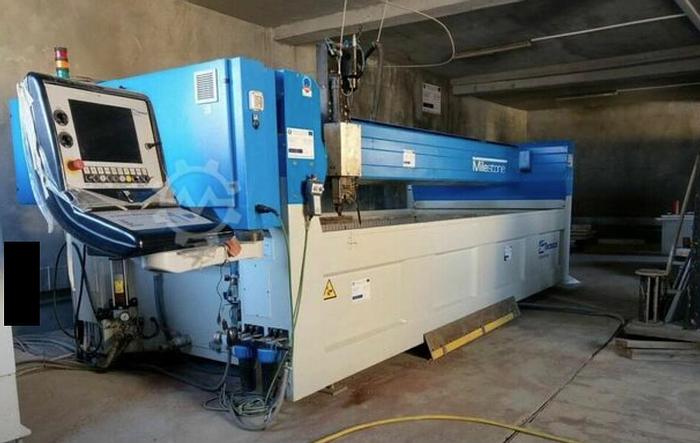

2015 CMS Brembana MileStone 1740 (M)

  5-axis waterjet cutting system

           Brembana Milestone s is an advanced, versatile, high-performance waterjet cutting system – either pure water or

             hydro-abrasive – able to accomodate the most diverse production demands in different application fields, delivering

             highly accurate cuts even in 3D.

·    the bridge structure with fixed table, mobile crossbeam and high guides make it compact and able to move quickly

·    all motions are carried out by tempered ground rack, driven by brushless motors

·    the axes’ guideways are housed within the structure and protected by an innovative system called “Powder-Free”,

                      which provides full protection against water and powders

TECHNICAL CHARACTERISTICS

- Max processing thickness..................mm.        150

- Working processing hours................no.:   >1.000

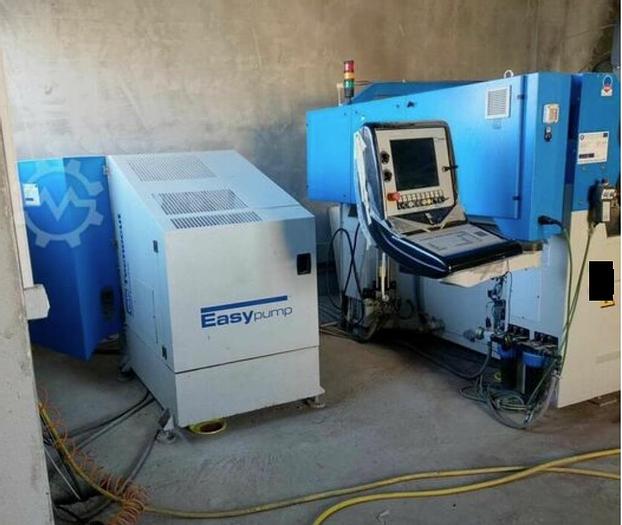

- High pressure pump model................JetPowerEvo

- Optionals.........................................Full equipped

- Overall dimensions............................mm     5.900x3.900

- INTERPOLATED AXIS................................no.:          05

- Useful working dimension s

              X axis..........................................mm     4.000

              Y axis..........................................mm     1.700

              Z axis......................................  ..mm        150

              B axis..............................................°    +/-  60

              C axis..............................................°         630

- speed......................................................mm/1'         0 - 40000

- pump power.............................................HP             60

- processing power......................................kW           45

- water consumption...................................lts/1'           5

- pressure/max...........................................bar        4.150

- water flow/max........................................lts/1'             2,5

- working table weight capacity....................kg/sq.mt 1.000

- Colors touch screen dimension…............… inches         15 TFT

- Voltage/frequency.....................................V/Hz.        400 V +/- 5% - 50 Hz

- Weight…………………………………….............…kgs            3600 (water excluded)

- CE mark
