2006 BIDESE Impianti's 4000 Special

2006 BIDESE Impianti's 4000 Special

Hamburg, Deutschland

oderanrufen +49 (0)40 82279750

Beschreibung

Seilsäge , BIDESE Impianti's New 4000 Special

Ausgestattet mit einem fahrbarem und drehbaren Wagen

Die Single Wire wurde entwickelt, um Steinblöcke zu quadrieren, Platten und Stücke zu schneiden

 - equipped with no. 01 ROTATING motorized trolley



  The single wire m/c - mod.: New 4000 - has been designed to square blocks of stones, to cut slabs & thickness

  Technical characteristics:



- electrically welded steel structure, subjected to proper thermic and anti-corrosion treatments

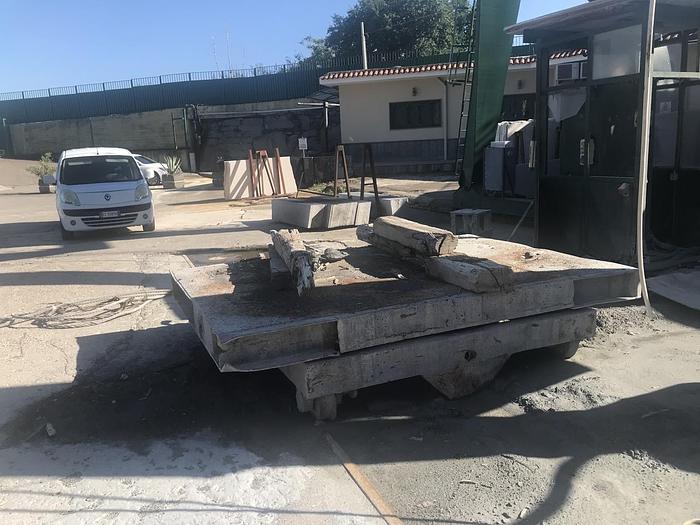

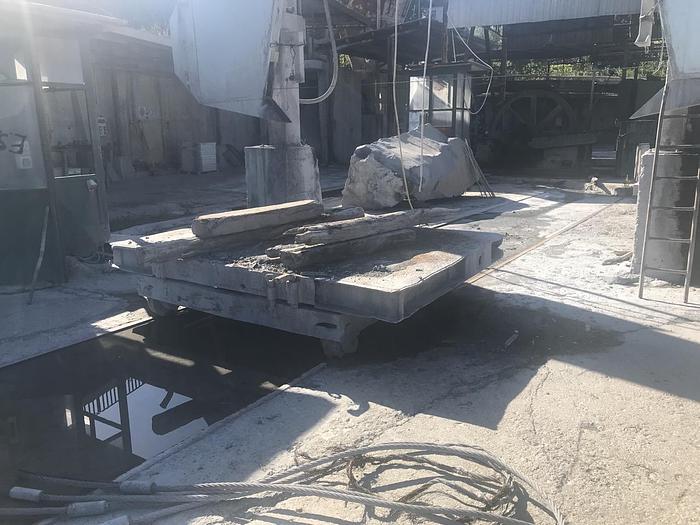

 - rotating block holding trolley

 - diamond wire arc management, through sensors which optimize the cutting speed in relation to the diamond wire arc, assuring a greater

           productivity and a remarkable diamond wire sawing

 - movements are allowed through the diamond wire motor and motors for axes positioning, which are controlled by inverter

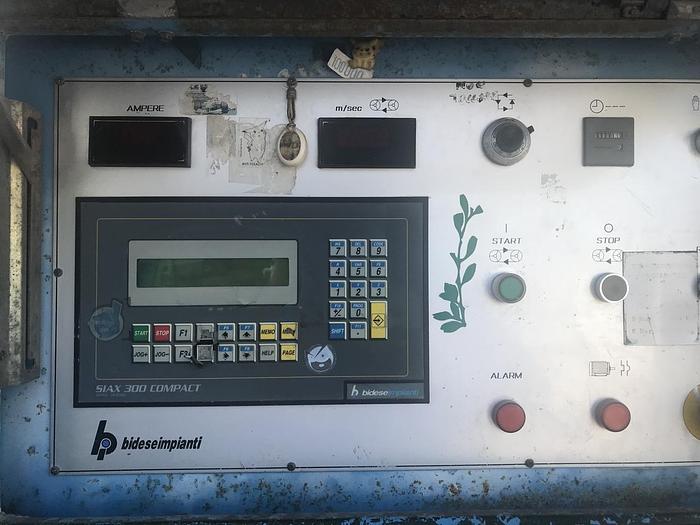

 - the CNC driving the m/c, allows to execute automatic working programs, display alarms and control the cutting speed concerning wire arc



Technical data:



- cutting area.........................................mms             4000 x 2150

- diamond wire tensioning cylinder...........mms. diam      125 x 500

- diamond wire peripheral speed..............m/1"                 10 - 40

- diamond wire length.............................mms           19000

- diamond cutting speed..........................cms/hr              10 - 1000

- raising speed........................................cms/hr          2520

- diamond wire diameter..........................mms                    9 - 11

- air consumption....................................Nl/1'                  50

- air pressure...........................................bar                     6

- water consumption.................................lt/1'                 40

- water pressure.......................................bar                    2

- diamond wire driving motor.....................kW                  22

- electrical power installed.........................kW                  30





Spezifikationen

HerstellerBIDESE Impianti's
Modell4000 Special
Jahr2006
ZustandGebraucht
